Toyota Sienna Service Manual: Speed sensor

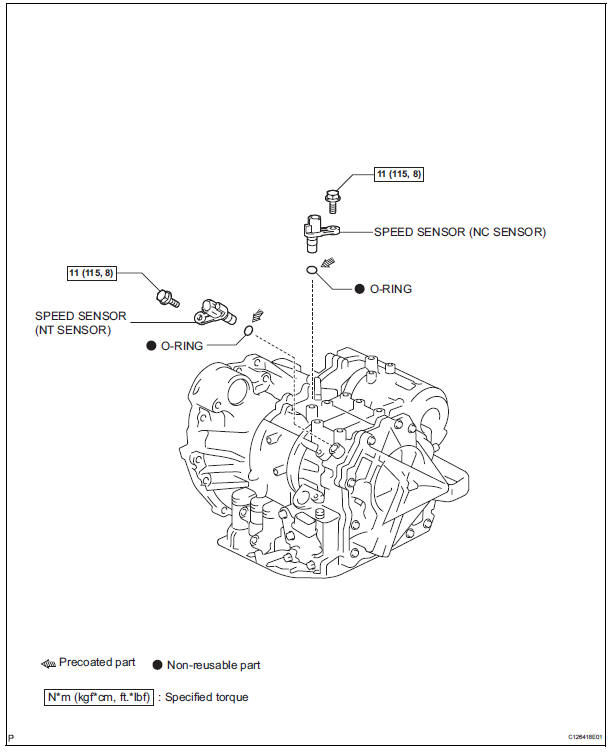

Components

Speed sensor

Disassembly
1. REMOVE FRONT DIFFERENTIAL RING GEAR (a) Place matchmarks on the front differential ring gear and differential case. (b) Remove the 14 bolts. (c) Using a plastic hammer, tap on the f ...

Removal
1. REMOVE BATTERY 2. REMOVE AIR CLEANER ASSEMBLY HINT: (See page EM-26) 3. REMOVE SPEED SENSOR (NT SENSOR) (a) Disconnect the speed sensor connector. (b) Remove the bolt and speed sensor. ...
