Toyota Sienna Service Manual: Inspection

1. INSPECT UNDERDRIVE PLANETARY GEAR PRELOAD

INSPECT UNDERDRIVE PLANETARY GEAR PRELOAD

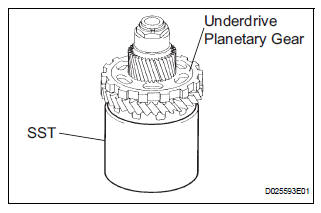

(a) Using SST, fix the underdrive planetary gear assembly.

SST 09387-00050

INSPECT UNDERDRIVE PLANETARY GEAR PRELOAD

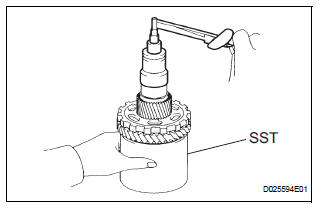

(b) Using SST and a torque wrench, measure the turning torque of the underdrive planetary gear assembly while rotating the torque wrench at 60 rpm.

SST 09387-00050 Turning torque at 60 rpm.: 0.50 to 1.42 N*m (5.1 to 14.5 kgf*cm, 4.4 to 12.6 in.*lbf)

HINT: Use a torque wrench with a fulcrum length of 160 mm (6.3 in.).

Disassembly
1. INSPECT UNDERDRIVE PLANETARY GEAR PRELOAD HINT: (See page AX-260) 2. REMOVE FRONT PLANETARY GEAR NUT (a) Using SST, loosen the staked part of the lock nut. SST 09930-00010 (09931-00010, ...

Reassembly
1. INSTALL UNDERDRIVE PLANETARY RING GEAR HINT: Use a torque wrench with a fulcrum length of 160 mm (6.3 in.). (a) Install a new snap ring to the outer race of the radial ball bearing rear. ...
