Toyota Sienna 2010-2018 Owners Manual: Manual headlight leveling dial (vehicles with discharge headlights)

Toyota Sienna 2010-2018 Owners Manual / Driving / Operating the lights and wipers / Headlight switch / Manual headlight leveling dial (vehicles with discharge headlights)

The level of the headlight aim can be adjusted according to the number of passengers and the loading condition of the vehicle.

Toyota Sienna. Manual headlight leveling dial


  1. Raises the level of the headlights
  2. Lowers the level of the headlights

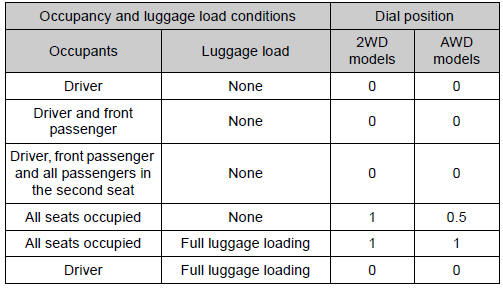

Guide to dial settings

Toyota Sienna. Guide to dial settings


Daytime running light system (if equipped)

Headlight control sensor

Toyota Sienna. Headlight control sensor


The sensor may not function properly if an object is placed on the sensor, or anything that blocks the sensor is affixed to the windshield.

Doing so interferes with the sensor detecting the level of ambient light and may cause the automatic headlight system to malfunction.

Automatic light off system

Light reminder buzzer

Customization

Settings (e.g. light sensor sensitivity) can be changed.

(Customizable features: )

NOTICE

To prevent battery discharge

Do not leave the lights on longer than necessary when the engine is not running.

Turning on the high beam headlights
With the headlights on, push the lever away from you to turn on the high beams. When the light switch is in position, the Automatic High Beam system will be activated. Pull the lev ...

Automatic High Beam
The Automatic High Beam uses an in-vehicle camera sensor to assess the brightness of streetlights, the lights of oncoming and preceding vehicles, etc., and automatically turns high beam on or off a ...
