Toyota Sienna Service Manual: Oil pump

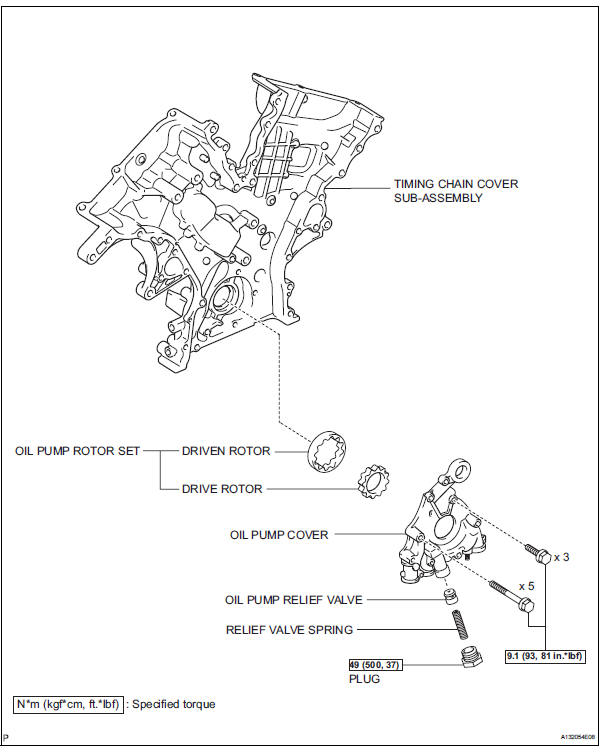

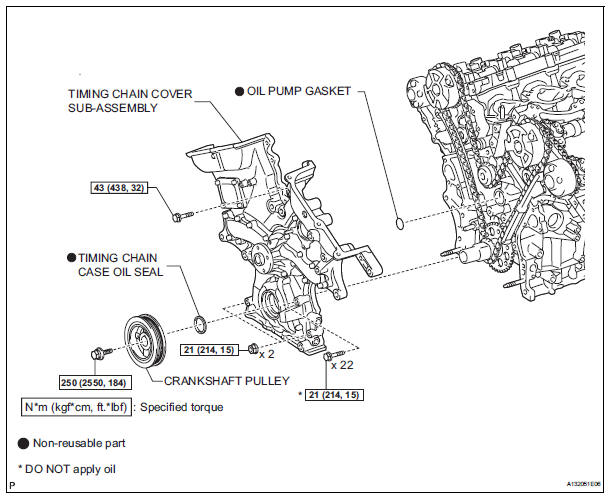

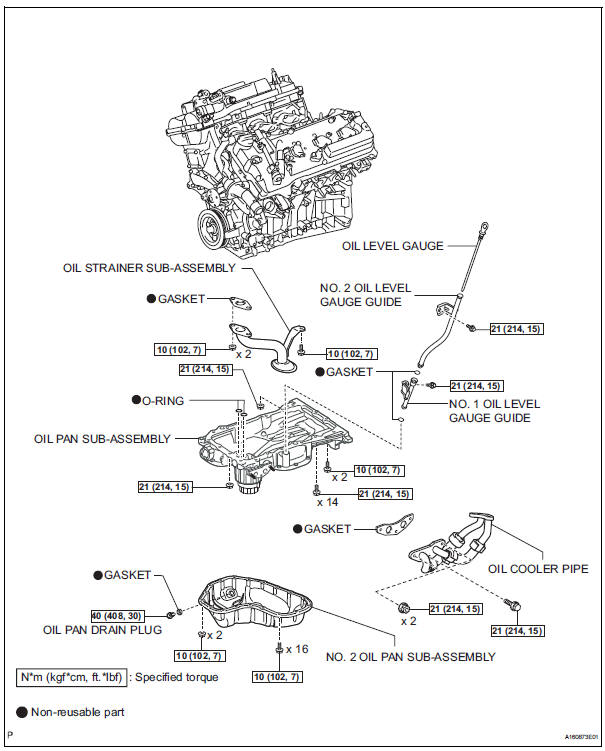

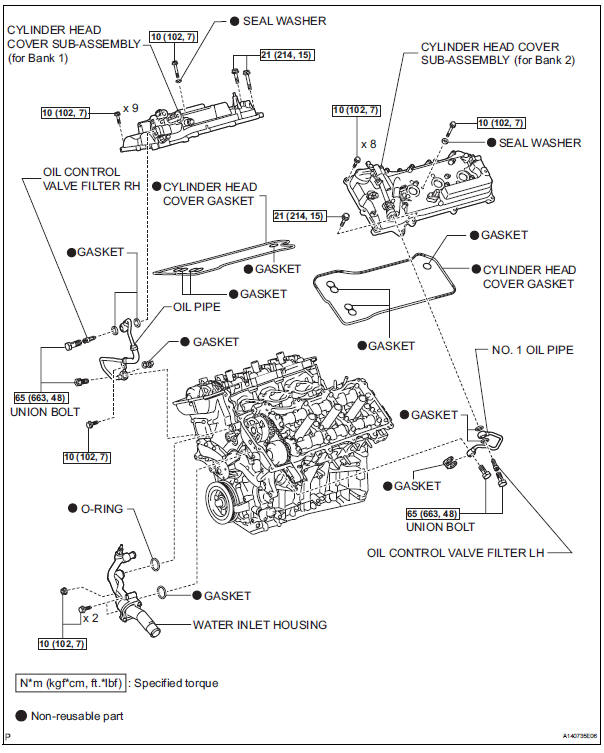

Components

Oil pump

Oil pump

Oil pump

Oil pump

Oil and oil filter
COMPONENTS REPLACEMENT CAUTION: Prolonged and repeated contact with engine oil will result in the removal of natural oils from the skin, leading to dryness, irritation and derma ...

Removal
1. REMOVE ENGINE ASSEMBLY WITH TRANSAXLE HINT: See page EM-26 2. REMOVE OIL LEVEL GAUGE GUIDE SUBASSEMBLY (See page EM-39) 3. REMOVE NO. 1 OIL PIPE (See page EM-77) 4. REMOVE OIL PIPE (See page ...
