Toyota Sienna Service Manual: Removal

1. REMOVE REAR DOOR SCUFF PLATE LH

2. REMOVE REAR DOOR WEATHERSTRIP LH

3. REMOVE BACK DOOR WEATHERSTRIP

4. REMOVE BACK DOOR SCUFF PLATE

5. REMOVE QUARTER TRIM FRONT PANEL ASSEMBLY LH

6. REMOVE VOLTAGE INVERTER ASSEMBLY

REMOVE VOLTAGE INVERTER ASSEMBLY

  1.  Disconnect the connector.

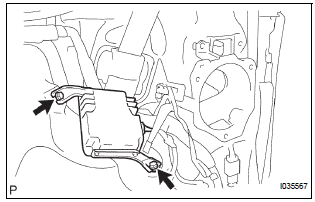

  2.  Remove the 2 bolts and the voltage inverter assembly.
On-vehicle inspection
1. INSPECT VOLTAGE INVERTER ASSEMBLY  Inspect the voltage inverter assembly. ...

Inspection
1. INSPECT INVERTER MAIN SWITCH  Inspect the continuity between terminal at the each switch position shown in the chart. If continuity is not as specified, replace the main swit ...
