Toyota Sienna Service Manual: Removal

1. PRECAUTION

CAUTION: Be sure to read "PRECAUTION" thoroughly before servicing.

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait for 90 seconds after disconnecting the cable to prevent the airbag working.

3. REMOVE FRONT SEAT ASSEMBLY (for Manual Seat)

4. REMOVE FRONT SEAT ASSEMBLY (for Power Seat)

5. REMOVE OCCUPANT CLASSIFICATION ECU

REMOVE OCCUPANT CLASSIFICATION ECU

  1.  Disconnect the 2 connectors from the occupant classification ECU.

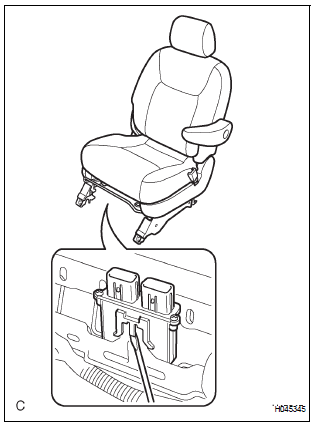

  2.  Using a screwdriver, remove the occupant classification ECU.
On-vehicle inspection
1. INSPECT OCCUPANT CLASSIFICATION ECU (VEHICLE NOT INVOLVED IN COLLISION)  Perform a diagnostic system check. 2. INSPECT OCCUPANT CLASSIFICATION ECU (VEHICLE INVOLVED IN COLLISION) ...

Installation
1. INSTALL OCCUPANT CLASSIFICATION ECU  Check that the ignition switch is off.  Check that the negative battery (-) terminal is disconnected. CAUTION: After disconnecting the ...
