Toyota Sienna Service Manual: Ventilation valve

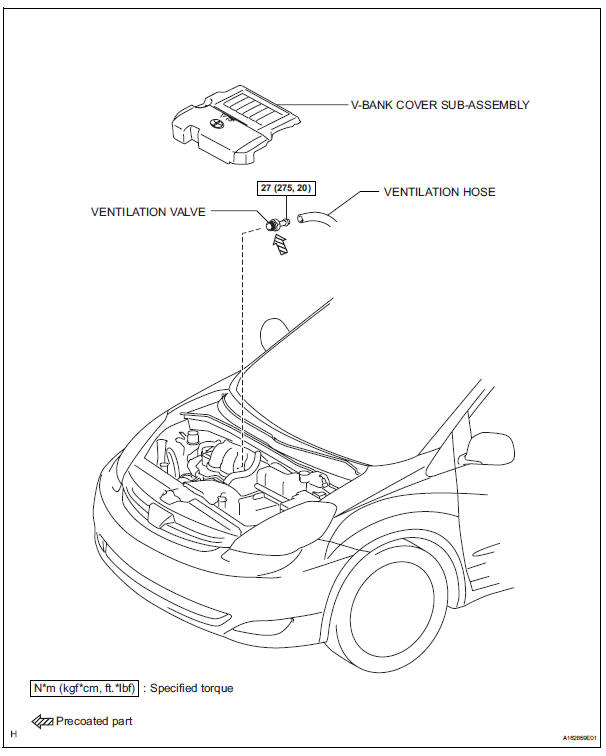

Components

Components

Installation
1. Install purge vsv (A) install the purge vsv with the bolt. Torque: 10 n*m (102 kgf*cm, 7 ft.*Lbf) (B) connect the 2 vacuum hoses and no. 1 Vacuum switching valve connector. 2. INSTAL ...

Removal
1. REMOVE V-BANK COVER SUB-ASSEMBLY (See page EM-28) 2. DISCONNECT VENTILATION HOSE (a) Disconnect the ventilation hose from the ventilation valve. 3. REMOVE VENTILATION VALVE (a) Remove ...
