Toyota Sienna 2010-2024 Owners Manual: Folding down the third seats (manual seats)

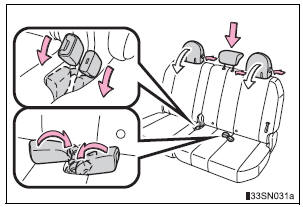

Before folding the third seats
- Fold the outside head restraints and lower the center head restraint to the lowest position , and stow the seat belt buckles.
- Stow the center seat belt.
Folding down the third seatbacks

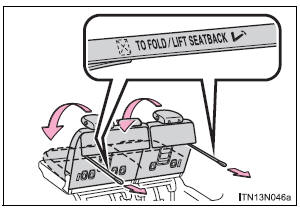

Pull the “TO FOLD/LIFT SEATBACK” strap a
Returning the third seatbacks

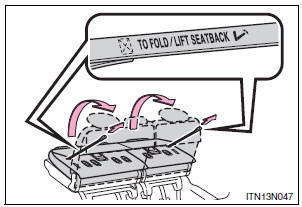

Pull the “TO FOLD/LIFT SEATBACK” strap, and raise the seatback and the outside head restraints.
Installing the second seats
Installing the second outside seats
Align the marking on the seat side cover to the marking on the
rail cover and align the marking on the seat front/back cover to
the rail.
Tip-up seat
...
Folding down the third seats (power seats)
You can operate the power third seats when the shift lever is in P.
Before folding the third seats
Lower the center head
restraint to the lowest position and stow the
seat belt buckles.
...
