Toyota Sienna Service Manual: Removal

Toyota Sienna Service Manual / Supplemental restraint system / Front airbag sensor / Removal

HINT:

Use the same procedures for the RH side and LH side.
The procedures listed below are for the LH side.

1. PRECAUTION

CAUTION: Be sure to read "PRECAUTION" thoroughly before servicing.

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait for 90 seconds after disconnecting the cable to prevent the airbag working.

3. REMOVE FRONT AIRBAG SENSOR LH

REMOVE FRONT AIRBAG SENSOR LH

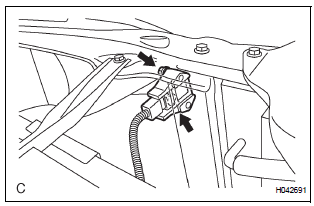

Disconnect the connector from the front airbag sensor LH.
Remove the 2 bolts and the front airbag sensor LH.
