Toyota Sienna Service Manual: Sliding roof system

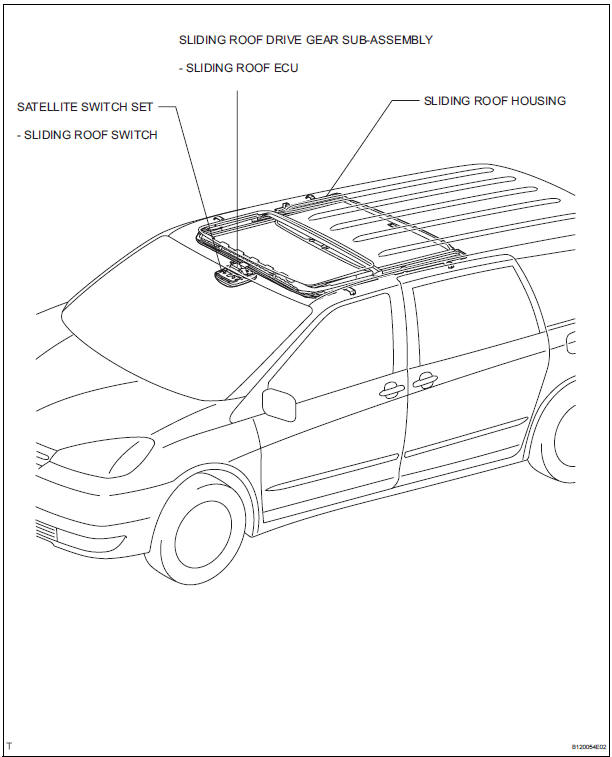

PARTS LOCATION

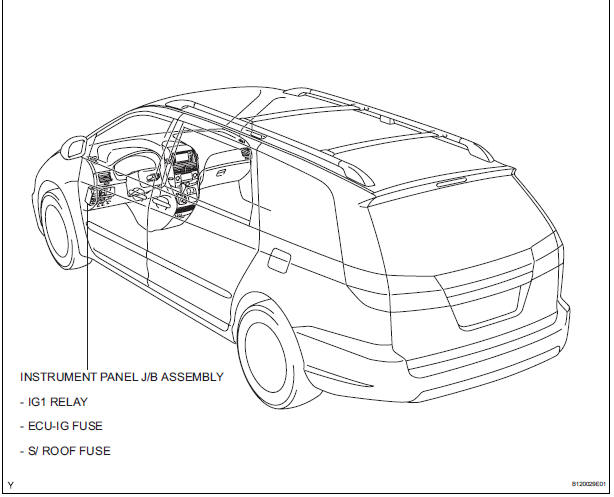

PARTS LOCATION

PARTS LOCATION

Sliding roof
...

Initialization
1. RESET SLIDING ROOF MOTOR If the AUTO operation function does not operate, reset the sliding roof motor using any of the following methods. Press the sliding roof switch on the TILT UP ...

Other materials:

Display Signal Circuit between Television Display Assembly and Radio and Navigation Assembly
DESCRIPTION This circuit sends a DVD image signal from the television display assembly to the radio and navigation assembly. WIRING DIAGRAM INSPECTION PROCEDURE 1 CHECK HARNESS AND CONNECTOR (RADIO AND NAVIGATION ASSEMBLY - TELEVISION DISPLAY ASSEMBLY) Disconnect the radio and n ...

Removal
1. REMOVE FRONT DOOR LOWER FRAME BRACKET GARNISH 2. REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG 3. REMOVE FRONT DOOR ARMREST BASE PANEL ASSEMBLY 4. REMOVE BACK FRAME PLATE 5. REMOVE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY 6. REMOVE FRONT DOOR TRIM BOARD SUBASSEMBLY 7. REMOVE OUTER RE ...

Problem symptoms table
SLIDING ROOF SYSTEM Symptom Suspected area AUTO function does not operate Sliding roof motor assembly Sliding roof system does not operate ECU-IG fuse S/ Roof fuse IG1 relay Sliding roof housing assembly Sliding roof motor switc ...
