Toyota Sienna Service Manual: Automatic transaxle assembly

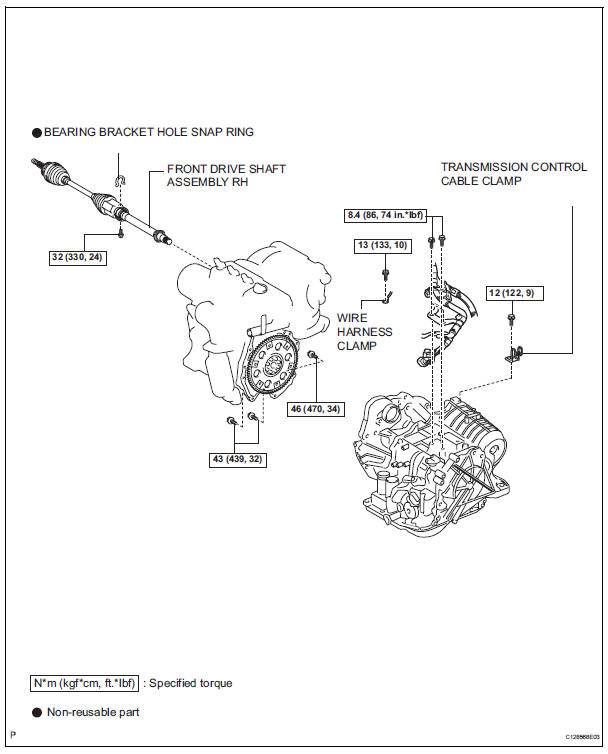

Components

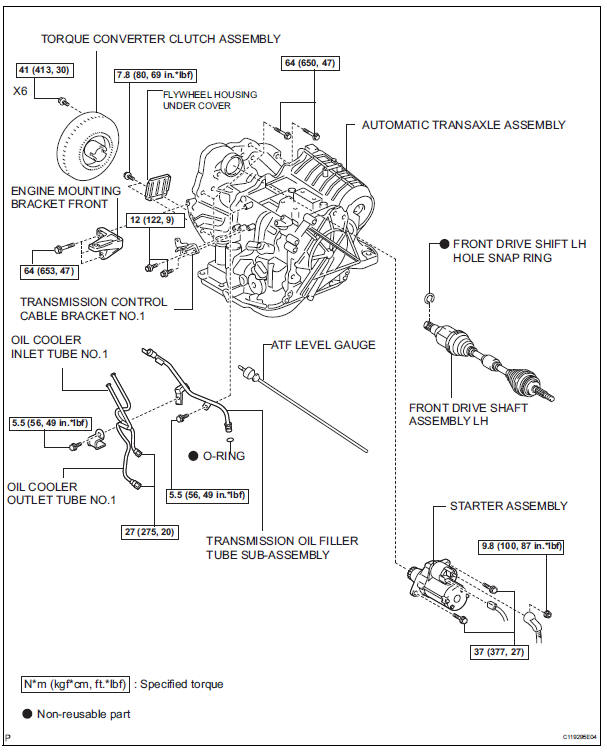

Automatic transaxle assembly

Automatic transaxle assembly

Installation
1. INSTALL TRANSAXLE HOUSING OIL SEAL (a) Using SST and a hammer, install a new oil seal. SST 09316-60011 (09316-00011) Oil seal installation depth: -0.5 to 0.5 mm (-0.020 to 0.020 in.) (b) ...

Removal
1. REMOVE ENGINE ASSEMBLY WITH TRANSAXLE HINT: (See page EM-26) 2. REMOVE FRONT DRIVE SHAFT ASSEMBLY LH HINT: (See page DS-6) 3. REMOVE FRONT DRIVE SHAFT ASSEMBLY RH HINT: (See page DS-6) 4. ...
