Toyota Sienna Service Manual: Forward clutch

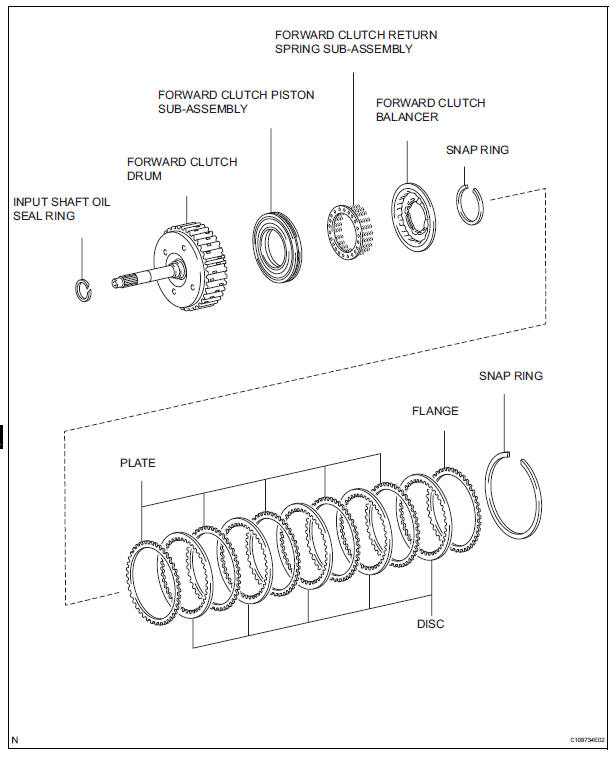

Components

Forward clutch

Reassembly
1. INSTALL 2ND BRAKE PISTON O-RING (a) Coat 2 new O-rings with ATF, and install them in the 2nd brake piston. NOTICE: Make sure that the O-ring is not twisted or pinched. 2. INSTALL 2ND BRAK ...

Disassembly
1. INSPECT PACK CLEARANCE OF FORWARD CLUTCH HINT: (See page AX-242) 2. REMOVE FORWARD MULTIPLE DISC CLUTCH DISC (a) Using a screwdriver, remove the snap ring. (b) Remove the flange, 5 di ...
