Toyota Sienna Service Manual: Inspection

1. Inspect air fuel ratio sensor

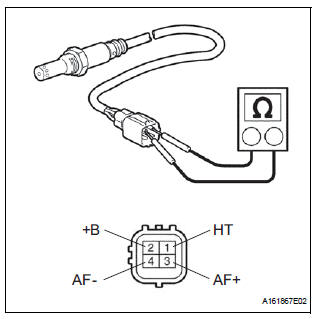

(A) measure the resistance of the sensor.

Standard resistance

If the resistance is not as specified, replace the sensor.

 Inspect air fuel ratio sensor

Removal
1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINALV Caution: wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat ...

Installation
1. INSTALL AIR FUEL RATIO SENSOR (for Bank 2 Sensor 1) (a) Using SST, install the sensor to the exhaust manifold LH. SST 09224-00010 Torque: 40 N*m (408 kgf*cm, 30 ft.*lbf) for use with SST ...
