Toyota Sienna Service Manual: Air fuel ratio sensor (for 4wd)

Toyota Sienna Service Manual / Engine / 2Gr-fe emission control / Air fuel ratio sensor (for 4wd)

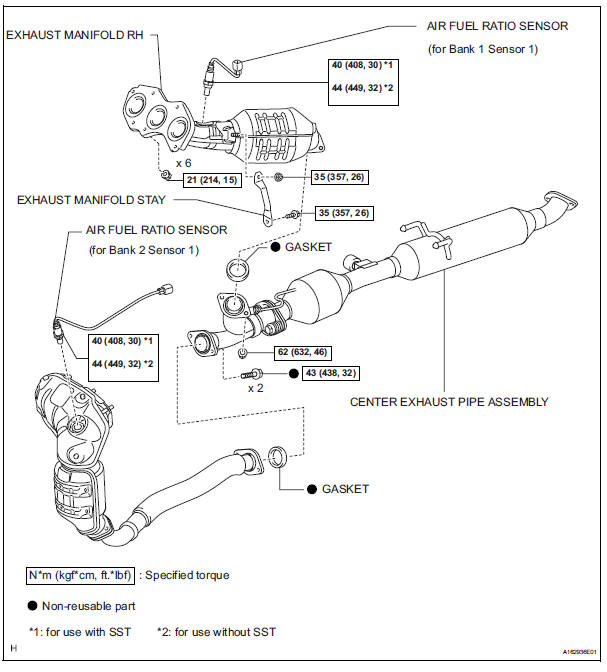

Components

Air fuel ratio sensor (for 4wd)

Installation
1. Install air fuel ratio sensor (for bank 2 sensor 1) (a) Using SST, install the sensor to the exhaust manifold LH. SST 09224-00010 Torque: 40 N*m (408 kgf*cm, 30 ft.*lbf) for use with SST ...

On-vehicle inspection
HINT: The type of ignition switch on this model differs according to the specifications of the vehicle. For the expressions used in this section, refer to the "EXPRESSIONS OF IGNITION SWITCH& ...
