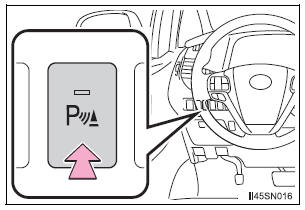

Toyota Sienna 2010-2018 Owners Manual: Intuitive parking assist switch
Turns the intuitive parking assist on/off
When on, the indicator light comes on and the buzzer sounds to inform the driver that the system is operational.
Types of sensors
Front corner sensors
(if equipped)
Rear corner sensors
Rear center sensors
...
Display
When the sensors detect an obstacle, the following displays inform
the driver of the position and distance to the obstacle.
Multi-information display
Front corner sensor operation
Rear cor ...
