Toyota Sienna Service Manual: Shift lever

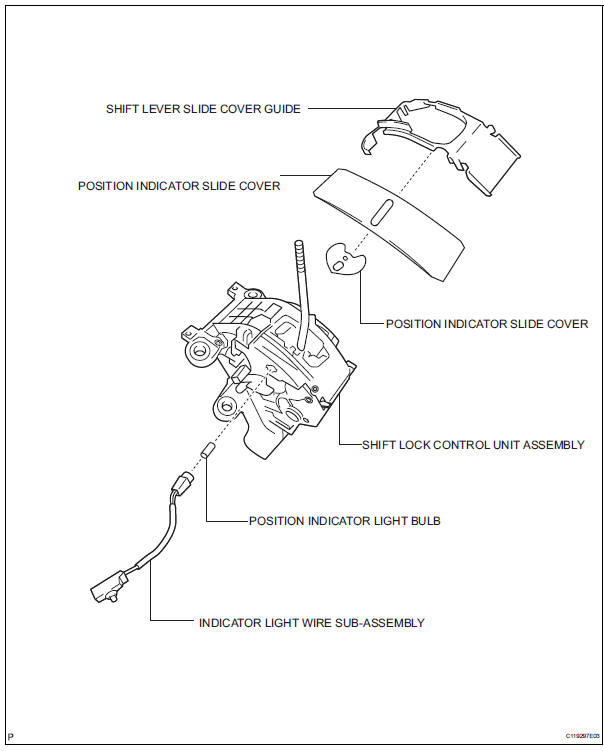

Components

Shift lever

Shift lever

Shift lock system
On-vehicle inspection 1. CHECK SHIFT LOCK OPERATION (a) Move the shift lever to the P position. (b) Turn the ignition switch to the LOCK position. (c) Check that the shift lever cannot be move ...

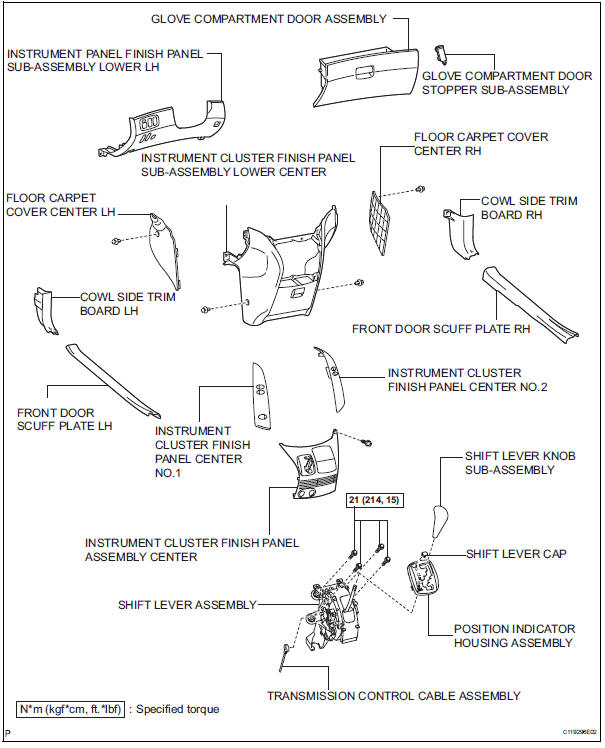

Removal
1. DISCONNECT BATTERY NEGATIVE TERMINAL 2. REMOVE FRONT DOOR SCUFF PLATE LH HINT: (See page IP-6) 3. REMOVE FRONT DOOR SCUFF PLATE RH HINT: (See page IP-6) 4. REMOVE COWL SIDE TRIM BOARD LH HI ...
