Toyota Sienna Service Manual: Thermostat

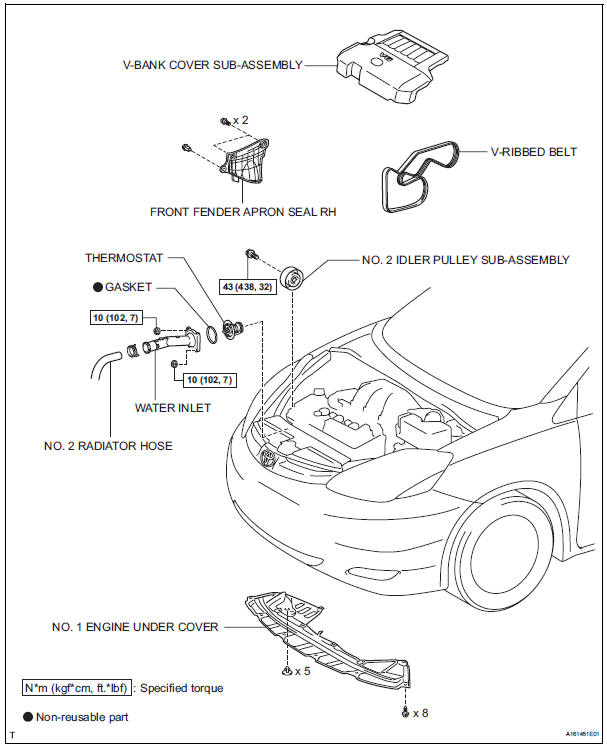

Components

Thermostat

Installation
1. INSTALL WATER PUMP ASSEMBLY (a) Install a new water pump gasket and the water pump assembly with the 16 bolts. Torque: Bolt A 21 N*m (214 kgf*cm, 15 ft.*lbf) Bolts B and C 9.1 N*m (93 kgf ...

Removal
1. REMOVE V-BANK COVER SUB-ASSEMBLY (See page EM-28) 2. REMOVE NO. 1 ENGINE UNDER COVER (See page EM-26) 3. DRAIN ENGINE COOLANT (See page CO-6) 4. REMOVE FRONT WHEEL RH 5. REMOVE FRONT FENDER A ...
