Toyota Sienna 2010-2023 Owners Manual: Armrests
Pull the armrest down for use.

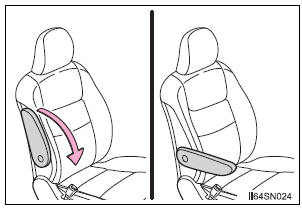

- Front seat

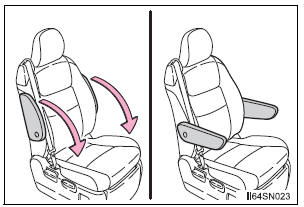

- Second seat (if equipped)
Adjusting the front seat armrests (if equipped)
Push the armrest down while pressing the button.
| NOTICE To prevent damage to the armrest, do not apply too much load on the armrest. |
