Toyota Sienna Service Manual: Axle

Differential

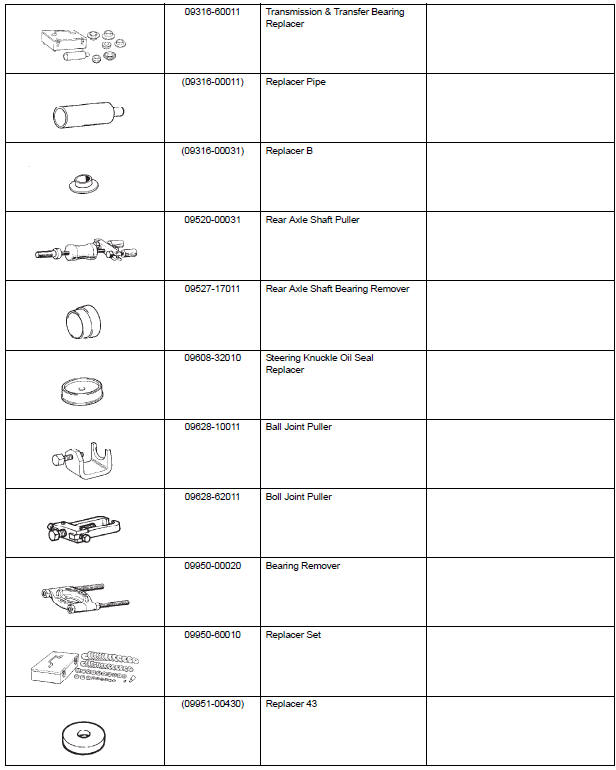

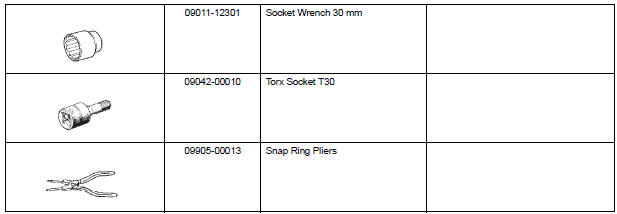

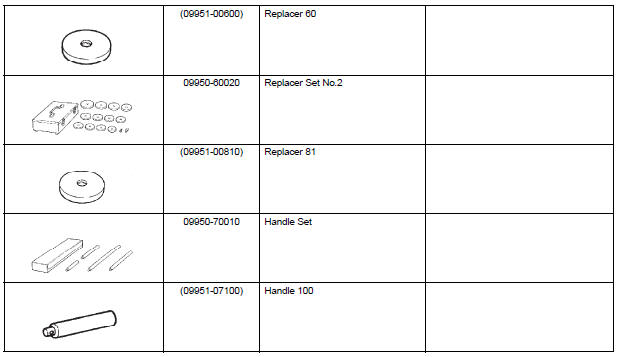

SST RECOMMENDED TOOLS EQUIPMENT LUBRICANT SSM ...

Suspension

SST RECOMMENDED TOOLS EQUIPMENT TIRE AND WHEEL RECOMMENDED TOOLS EQUIPMENT ...

Other materials:

Symptom confirmation and diagnostic trouble code
HINT: The diagnostic system in the SIENNA has various functions. The first function is the Diagnostic Trouble Code (DTC) check. A DTC is a code stored in the ECU memory whenever a malfunction in the signal circuits to the ECU occurs. In a DTC check, a previous malfunction's DTC can be ...

ECM Power Source Circuit
DESCRIPTION When the ignition switch is turned to the ON position, the battery voltage is applied to terminal IGSW of the ECM. The ECM MREL output signal causes a current to flow to the coil, closing the contacts of the EFI relay and supplying power to terminal +B of the ECM. If the igniti ...

On-vehicle inspection
1. INSPECT FRONT AXLE HUB BEARING BACKLASH (a) Using a dial gauge, check for backlash near the center of the axle hub. Maximum: 0.05 mm (0.0020 in.) If backlash exceeds the maximum, replace the bearing. NOTICE: Ensure that the dial gauge is set at right angles to the measurement surface ...
