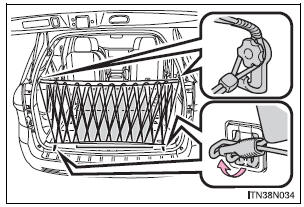

Toyota Sienna 2010-2024 Owners Manual: Cargo net hooks
Raise the hook to use.
- Pattern 1
- Pattern 2
| NOTICE To prevent damage to the cargo net hooks, avoid hanging things other than a cargo net on them. |

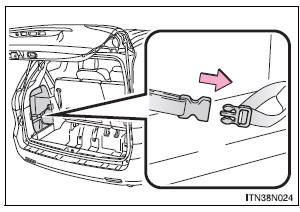

Storage box (if equipped)
Engage the latch buckle.
Cargo hooks
Raise the hook to use.
The cargo hooks are provided for
securing loose items.
WARNING
To avoid injury, always return the cargo hooks to their positions when
they
are not in use ...
