Toyota Sienna 2010-2024 Owners Manual: Cup holders
- Front

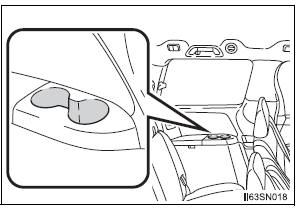

Press in and release the front cup holder.

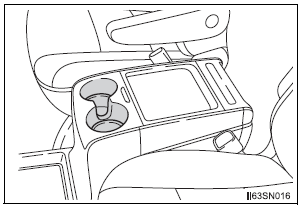

- Console box type A (if equipped)
- Console box type B (if equipped)

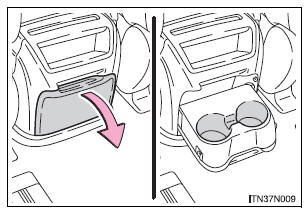

Pull the lid down.
- Console box type C (if equipped)

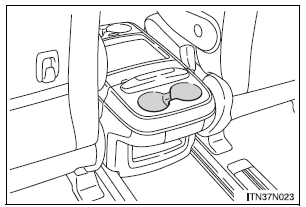

- Second seat (if equipped)
Removing the second center seat.
- Rear
Cup holder light (console box type)
The cup holder light turns on when the headlight switch is on.
| WARNING
Do not place anything other than cups or beverage cans in the cup
holders.
Other items may be thrown out of the holders in the event of an accident or sudden braking and cause injury. If possible, cover hot drinks to prevent burns. |
Console box
Press the tab.
Type A
Type B
Sliding the console box (type B)
From front
Press the tab and slide the console box.
From rear
Pull up the lever and slide the c ...
Bottle holders
Front
Rear
When storing a bottle, close the cap.
The bottle may not be stored depending on its size or shape.
WARNING
Do not place anything other than a bottle in ...
