Toyota Sienna Service Manual: Current Position Display does not Appear
INSPECTION PROCEDURE
1 CHECK RADIO AND NAVIGATION ASSEMBLY

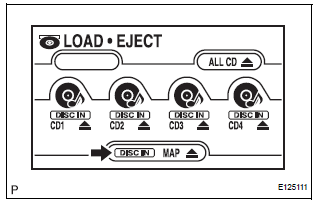

- Check if a map disc is inserted into the map disc slot.
OK: A map disc is inserted
2 CHECK MAP DISC

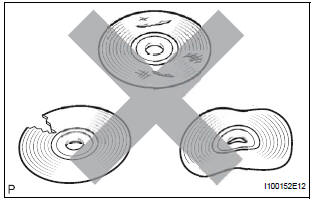

- Check that the map disc is not deformed or cracked.
OK: No deformations or cracks appear on the map disc.
PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
Vehicle Position Mark is not Updated
INSPECTION PROCEDURE
1 CHECK MAP DISC
Check that the map disc is not deformed or cracked.
OK:
No deformations or cracks on map disc.
2 CHECK MAP DISPLAY
Check if a touch scroll can b ...
GPS Mark is not Displayed
INSPECTION PROCEDURE
1 CHECK CABIN
Check the cabin for any object that might interrupt radio
reception on the instrument panel. If such an object
exists, remove it and check if the GPS mark r ...
