Toyota Sienna Service Manual: Glossary of sae and Toyota terms

Toyota Sienna Service Manual / Introduction / Terms / Glossary of sae and Toyota terms

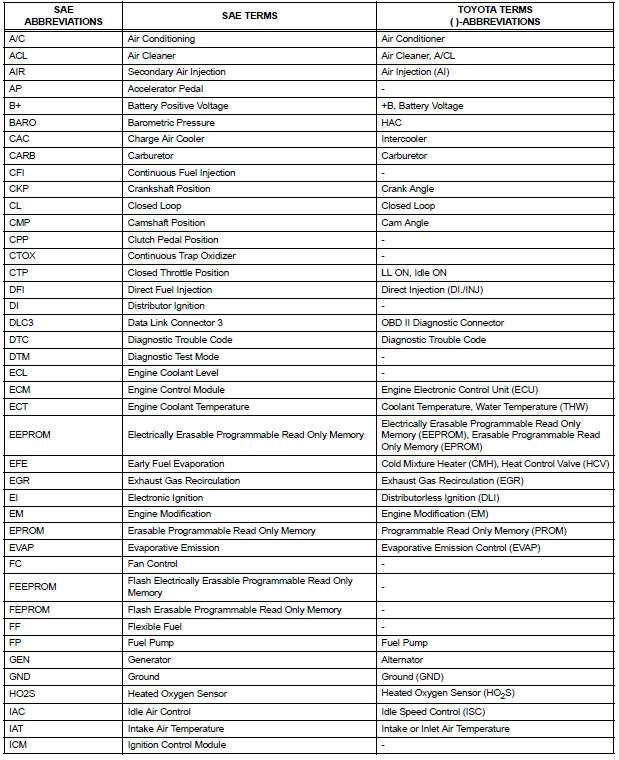

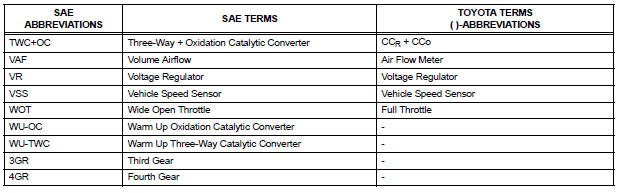

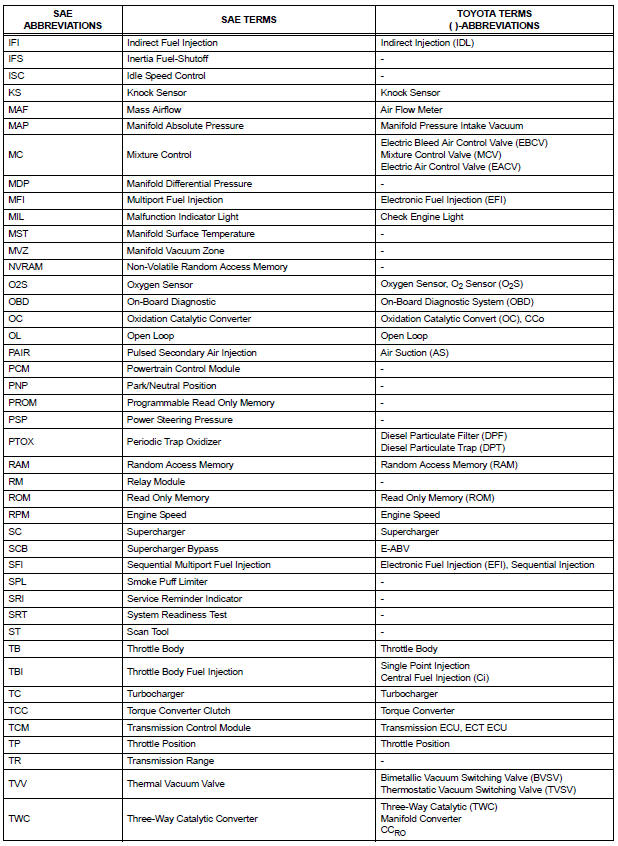

This glossary lists all SAE-J1930 terms and abbreviations used in this manual in compliance with SAE recommendations, as well as their TOYOTA equivalents.

Glossary of sae and Toyota terms

Glossary of sae and Toyota terms

Glossary of sae and Toyota terms
