Toyota Sienna 2010-2022 Owners Manual / When trouble arises / Essential information / If your vehicle has to be stopped in an emergency

Only in an emergency, such as if it becomes impossible to stop the vehicle in the normal way, stop the vehicle using the following procedure:

  1. Steadily step on the brake pedal with both feet and firmly depress it.

    Do not pump the brake pedal repeatedly as this will increase the effort required to slow the vehicle.

  2. Shift the shift lever to N.
  1. After slowing down, stop the vehicle in a safe place by the road.
  2. Stop the engine.
  1. Keep depressing the brake pedal with both feet to reduce vehicle speed as much as possible.

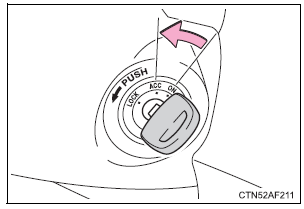

  2. Vehicles without a smart key system: Stop the engine by turning the engine switch to the “ACC” position.

Toyota Sienna. If your vehicle has to be stopped in an emergency

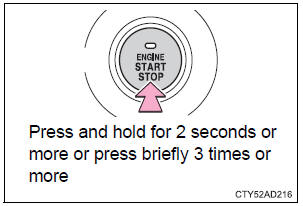

Vehicles with a smart key system: To stop the engine, press and hold the engine switch for 2 consecutive seconds or more, or press it briefly 3 times or more in succession.

Toyota Sienna. If your vehicle has to be stopped in an emergency


  1. Stop the vehicle in a safe place by the road.
WARNING

If the engine has to be turned off while driving

  • Power assist for the brakes and steering wheel will be lost, making the brake pedal harder to depress and the steering wheel heavier to turn.

    Decelerate as much as possible before turning off the engine.

  • Vehicles without a smart key system: Never attempt to remove the key, as doing so will lock the steering wheel
