Toyota Sienna. Meter panel light control

The brightness of the meter panel lights can be adjusted.

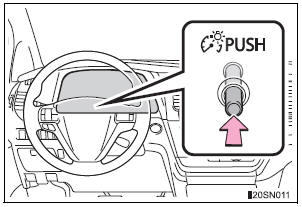

Pressing the button will adjust the brightness of the meter panel lights.

The brightness level of the meters when the surroundings are bright (day mode) and dark (night mode) can be adjusted individually. However, when in day mode, adjusting the brightness level will also change the brightness level of night mode.

Outside temperature display

In the following situations, the correct outside temperature may not be displayed, or the display may take longer than normal to change.

When stopped, or driving at low speeds (less than 12 mph [20 km/h])
When the outside temperature has changed suddenly (at the entrance/ exit of a garage, tunnel, etc.)

The temperature range that can be displayed is from -40°F (-40°C) to 122°F (50°C).

Vehicles with monochrome display When the outside temperature drops below 37°F (3°C), the temperature display flashes 10 times.
Vehicles with color display When the outside temperature drops below 37°F (3°C), the ICE warning indicator will be displayed on the multi-information display.

When “--” or “E” is displayed, the system may be malfunctioning. Take your vehicle to your Toyota dealer.

NOTICE

To prevent damage to the engine and its components

Do not let the indicator needle of the tachometer enter the red zone, which indicates the maximum engine speed.
The engine may be overheating if the engine coolant temperature gauge is in the red zone (H). In this case, immediately stop the vehicle in a safe place, and check the engine after it has cooled completely.

Changing the trip meter display

Pressing this button switches among the odometer, trip meter “A” and trip meter “B” displays. When the trip meter is displayed, pressing and holding the button will reset the trip m ...
