Toyota Sienna Service Manual: Wiper and washer system

Toyota Sienna Service Manual / Wiper and washer / Wiper and washer system

PRECAUTION

1. PRECAUTION OF WASHER NOZZLE ADJUSTMENT

  1.  Do not clean or adjust the washer nozzle with a safety pin, etc. because;
  1.  the washer nozzle tip is made of resin and could be damaged.
  2.  adjustment is not necessary because the washer nozzle is a spray type.
  1.  In case the washer nozzle is clogged with wax etc., remove it and clean the nozzle hole with a soft resin brush, etc.

PROBLEM SYMPTOMS TABLE

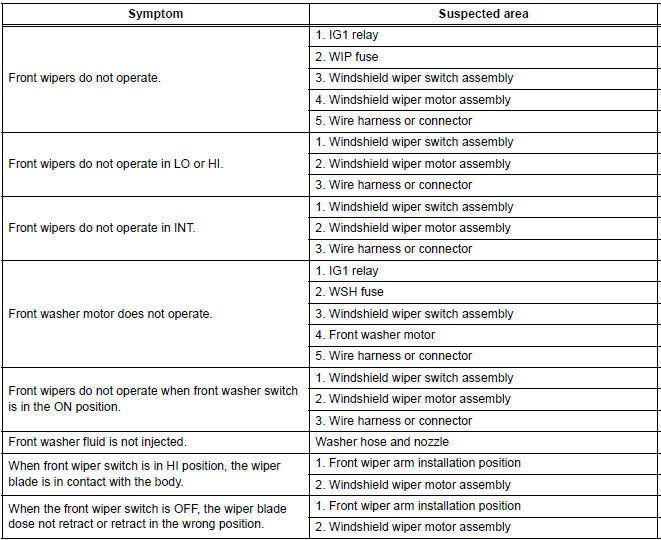

1. FRONT WIPER AND WASHER SYSTEM

FRONT WIPER AND WASHER SYSTEM

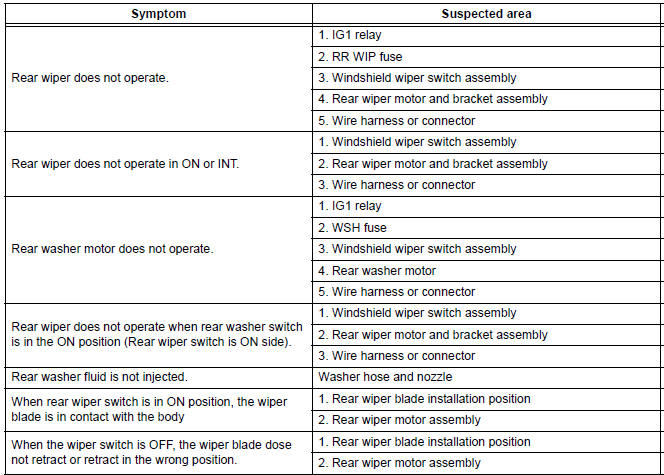

2. REAR WIPER AND WASHER SYSTEM

REAR WIPER AND WASHER SYSTEM

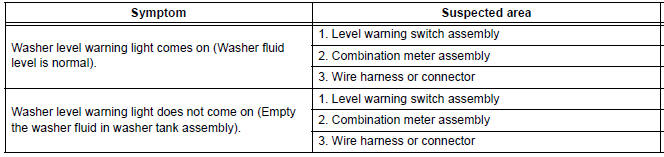

3. WASHER FLUID LEVEL WARNING SYSTEM

WASHER FLUID LEVEL WARNING SYSTEM
