The Mobile Assistant feature will activate Apple’s Siri® Eyes Free mode via the steering wheel switches. To operate the Mobile Assistant, a compatible cellular phone must be registered and connected to this system via Bluetooth®.

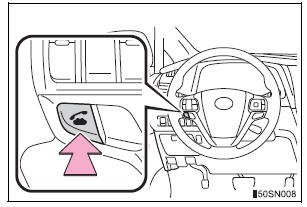

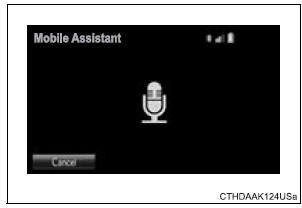

To cancel the Mobile Assistant, select “Cancel”, or press and hold the on the steering wheel.
To restart the Mobile Assistant for
additional commands, press the
on the steering wheel.
Adjusting the Mobile Assistant volume
The volume of the Mobile Assistant can be adjusted using the “PWR/VOL” knob or steering wheel volume control switches. The Mobile Assistant and phone call volumes are synchronized.
Notes about Mobile Assistant
