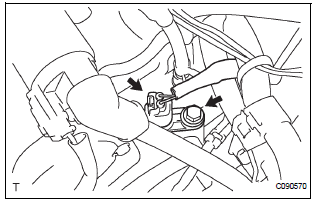

1. Install speed sensor (nc sensor)

(a) Coat the O-ring with ATF.
(b) Install the speed sensor with the bolt.
Torque: 11 N*m (115 kgf*cm, 8 ft.*lbf)
HINT: Make sure to install the same manufacturer's sensor.
(c) Connect the speed sensor connector.

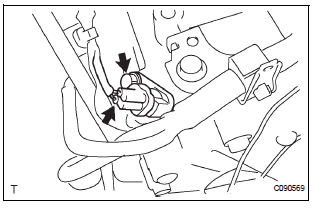

2. INSTALL SPEED SENSOR (NT SENSOR)

(a) Coat the O-ring with ATF.
(b) Install the speed sensor with the bolt.
Torque: 11 N*m (115 kgf*cm, 8 ft.*lbf)
HINT: Make sure to install the same manufacturer's sensor.
(c) Connect the speed sensor connector.
3. INSTALL AIR CLEANER ASSEMBLY
HINT: (See page EM-44)
4. INSTALL BATTERY
InspectionRemoval
1. REMOVE REAR WHEEL
2. REMOVE EXHAUST PIPE ASSEMBLY
HINT:
Perform this procedure only when removing the RH side.
(See page EX-8)
3. REMOVE REAR SPEED SENSOR LH
HINT:
(See page DS-21)
4. REMOVE REAR AXLE SHAFT NUT LH
HINT:
(See page DS-21)
5. REMOVE REAR DRIVE SHAFT ASSEMBLY LH
HINT:
...
Oxygen (A/F) Sensor Pumping Current Circuit
DTC P2238 Oxygen (A/F) Sensor Pumping Current Circuit
Low (Bank 1 Sensor 1)
DTC P2239 Oxygen (A/F) Sensor Pumping Current Circuit
High (Bank 1 Sensor 1)
DTC P2241 Oxygen (A/F) Sensor Pumping Current Circuit
Low (Bank 2 Sensor 1)
DTC P2242 Oxygen (A/F) Sensor Pumping Current Circuit
High (Bank ...
