ON-VEHICLE INSPECTION

1. INSPECT REAR A/C ROOM TEMPERATURE SENSOR

INSPECT REAR A/C ROOM TEMPERATURE SENSOR

(a) Remove the rear A/C room temperature sensor.

(b) Disconnect the connector from the rear A/C room temperature sensor.

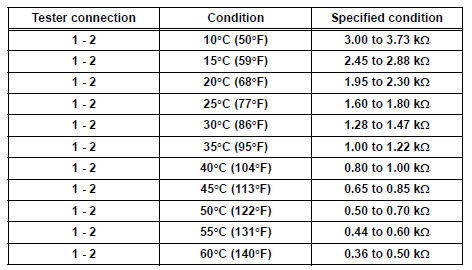

Standard resistance

NOTICE:

Even slightly touching the sensor may change the resistance value. Be sure to hold the connector of the sensor
When measuring, the sensor temperature must be the same as the ambient temperature.

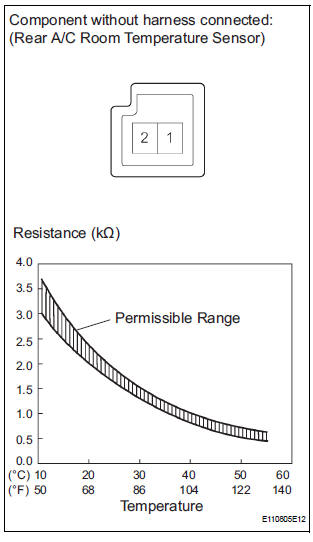

HINT: As the temperature increases, the resistance decreases (see the graph).

If the resistance is not as specified, replace the rear A/C room temperature sensor.
