Toyota Sienna 2010-2025 Owners Manual: Status display

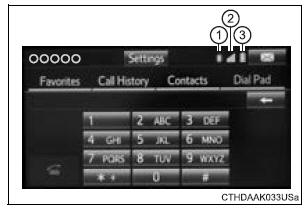

You can check indicators such as signal strength and battery charge on the phone screen.
- Connection status
- Signal strength
- Battery charge
Phone screen
To display the screen shown below, press the
switch on the steering
wheel or the button.
Several functions are available to operate on each screen that is displayed
by selecting the 4 tabs.
...
Making a call
Once a Bluetooth® phone is registered, you can make a call
using the following procedure:
Dialing
Display the phone screen.
Select the “Dial Pad” tab and enter a phone number.
To delet ...
