Toyota Sienna Service Manual: Brake actuator (w/o vsc)

Toyota Sienna Service Manual / Brake control / Brake actuator (w/o vsc)

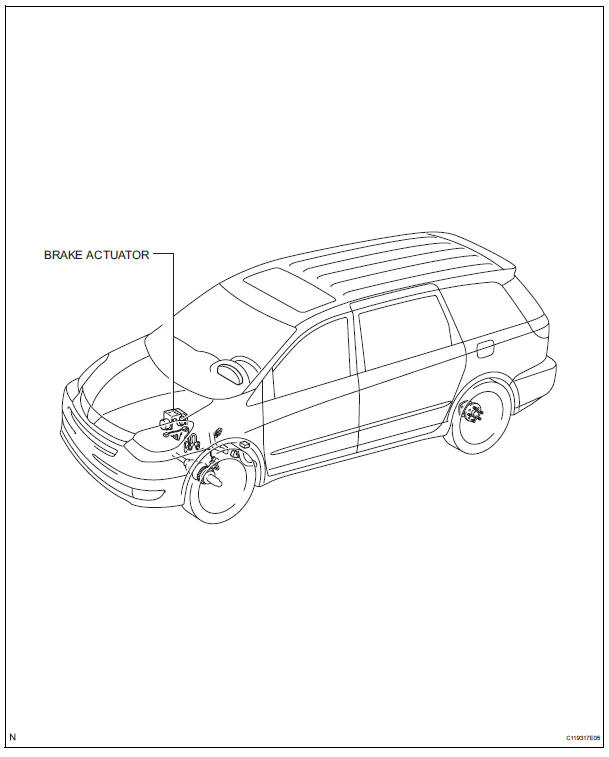

Components

Brake actuator (w/o vsc)

Installation
1. INSTALL BRAKE ACTUATOR NOTICE: Do not remove the hole plugs before connecting the brake tubes. New actuators are filled with brake fluid. (a) Install the brake actuator assembly with the 2 nut ...

On-vehicle inspection
1. CONNECT INTELLIGENT TESTER (a) Connect the intelligent tester to the DLC3. (b) Start the engine and run at idle. (c) Select the ACTIVE TEST mode on the intelligent tester. HINT: Pleas ...
