Toyota Sienna Service Manual: Compressor and magnetic clutch

Toyota Sienna Service Manual / Air conditioning / Compressor and magnetic clutch

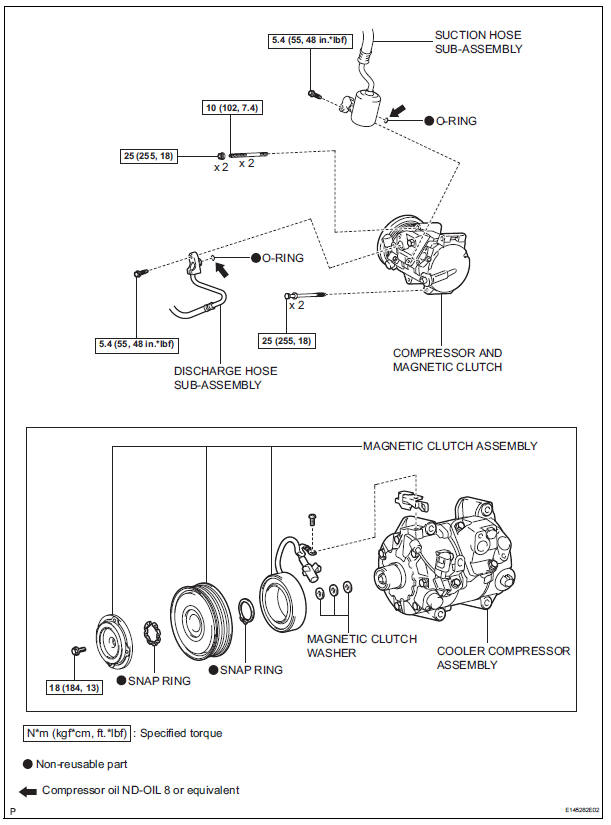

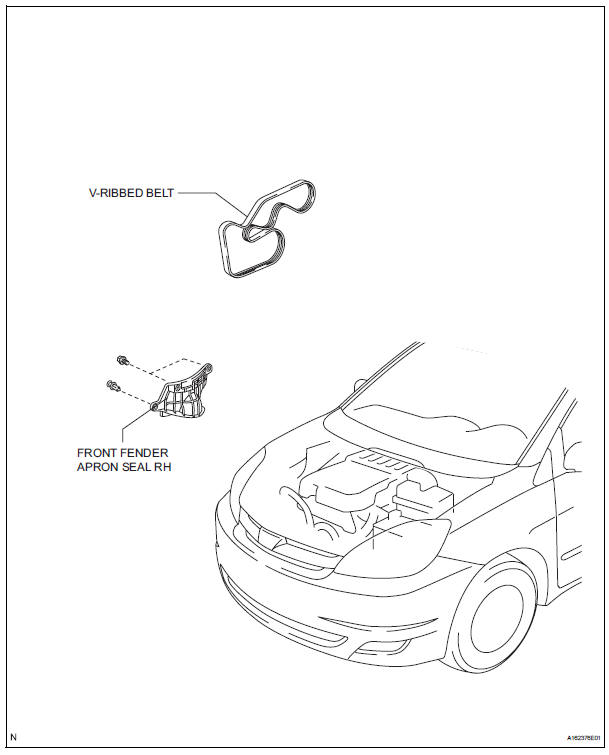

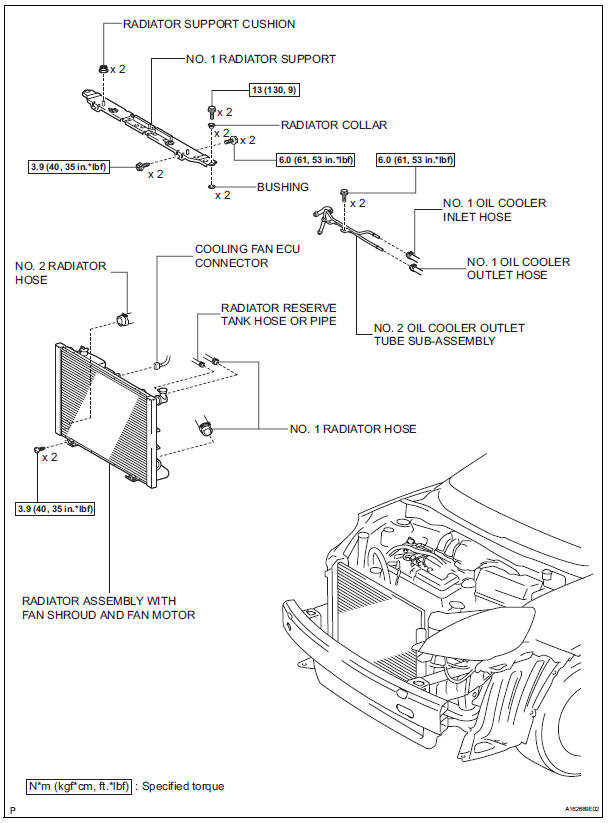

COMPONENTS

Compressor and magnetic clutch

Compressor and magnetic clutch

Compressor and magnetic clutch

Compressor and magnetic clutch

Compressor and magnetic clutch

Compressor and magnetic clutch
