Toyota Sienna 2010-2022 Owners Manual: Adjustment procedure

Toyota Sienna. Adjustment procedure

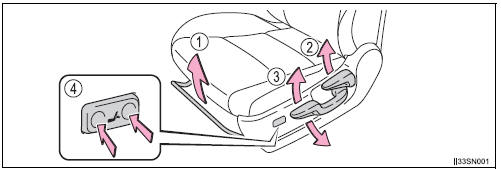

  1. Seat position adjustment lever
  2. Seatback angle adjustment lever
  3. Vertical height adjustment lever (driver’s side only) Lumbar support adjustment switch (driver’s side only)*

*: If equipped

Toyota Sienna. Adjustment procedure

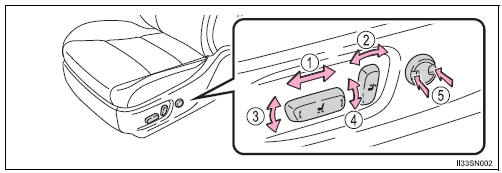

  1. Seat position adjustment switch
  2. Seatback angle adjustment switch
  3. Seat cushion (front) angle adjustment switch (driver’s side only)
  4. Vertical height adjustment switch (driver’s side only)
  5. Lumbar support adjustment switch (driver’s side only)
Front seats
...

Active head restraints
When the occupant’s lower back presses against the seatback during a rear-end collision, the head restraint moves slightly forward and upward to help reduce the risk of whiplash on the seat ...
