Inspection

1. INSPECT OUTER MIRROR SWITCH ASSEMBLY (w/o Memory)

 INSPECT OUTER MIRROR SWITCH ASSEMBLY

  1.  The L side of the left / right adjustment switch: Inspect the mirror switch resistance.

Standard resistance (Left side)

Standard resistance

If the result is not as specified, replace the switch assembly.

  1.  The R side of the left / right adjustment switch: Inspect the mirror switch resistance.

Standard resistance (Right side)

Standard resistance

If the result is not as specified, replace the switch assembly.

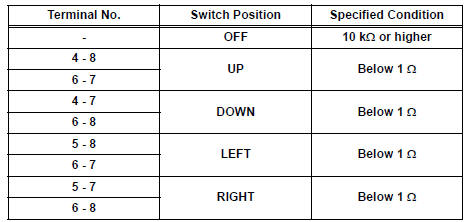

2. INSPECT OUTER MIRROR SWITCH ASSEMBLY (w/ Memory)

INSPECT OUTER MIRROR SWITCH ASSEMBLY

  1.  Remove the outer mirror control switch.

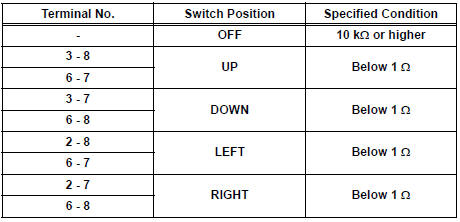

  2. Measure the resistance according to the value(s) in the table below when the switch is operated.

Resistance

Resistance

*1: The L or R of the left / right adjustment switch.

Installation
1. INSTALL OUTER REAR VIEW MIRROR ASSEMBLY LH  Install the mirror with the 3 nuts. Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)  Connect the connector. ...
