Toyota Sienna Service Manual: Cigarette lighter

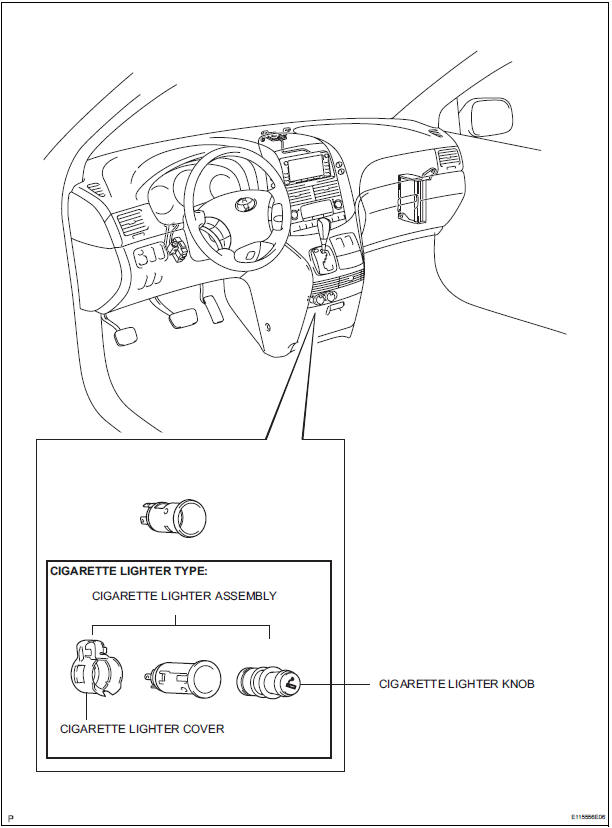

COMPONENTS

COMPONENTS

COMPONENTS

Clock
PARTS LOCATION On-vehicle inspection 1. INSPECT INTEGRATION CONTROL & PANEL ASSEMBLY  Disconnect the A9 connector.  Measure the voltage according to the value(s) in the ...

Removal

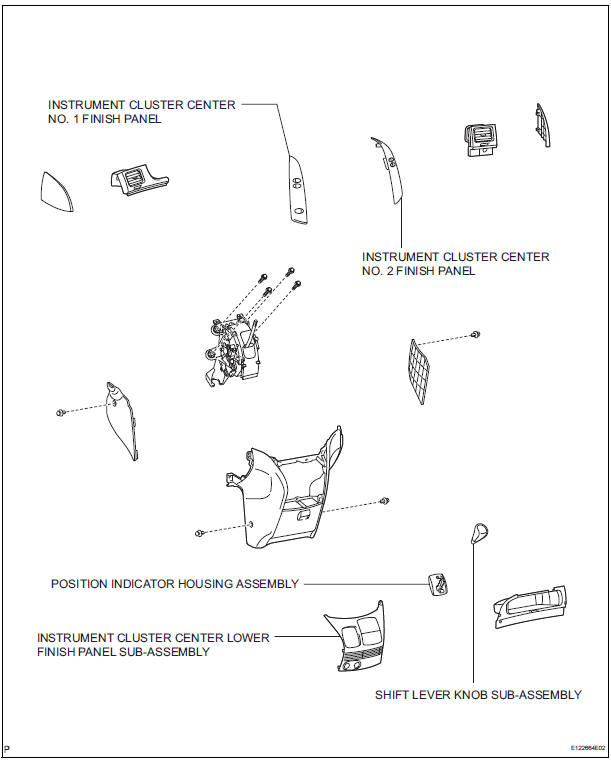

1. REMOVE INSTRUMENT CLUSTER CENTER NO. 1 FINISH PANEL 2. REMOVE INSTRUMENT CLUSTER CENTER NO. 2 FINISH PANEL 3. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY 4. REMOVE POSITION INDICATOR HOUSING ASSEMBLY ...
