Toyota Sienna Service Manual: Clock

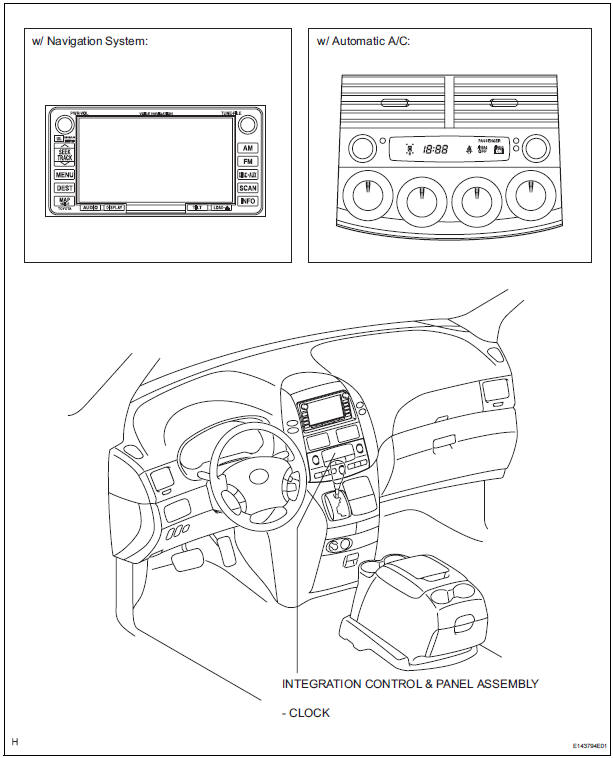

PARTS LOCATION

PARTS LOCATION

On-vehicle inspection

1. INSPECT INTEGRATION CONTROL & PANEL ASSEMBLY

INSPECT INTEGRATION CONTROL & PANEL ASSEMBLY

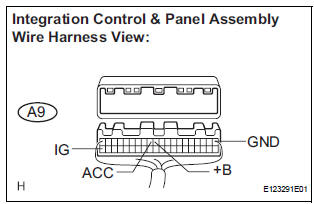

  1.  Disconnect the A9 connector.

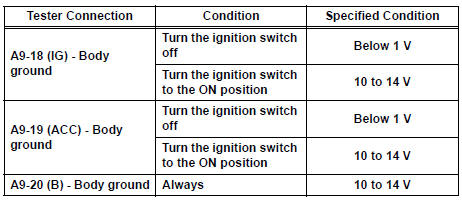

  2.  Measure the voltage according to the value(s) in the table below.

Standard voltage

Standard voltage

  1. Measure the resistance according to the value(s) in the table below.

Standard resistance

Standard resistance

HINT: If the value is not as specified, repair or replace harness or connector.
