Toyota Sienna Service Manual: Data list / active test

HINT: By accessing the DATA LIST displayed by the intelligent tester, you can perform such functions as reading the values of switches and sensors without removing any parts. Reading the DATA LIST as the first step in troubleshooting is one method to shorten labor time.

1. DATA LIST FOR OCCUPANT CLASSIFICATION ECU

DATA LIST FOR OCCUPANT CLASSIFICATION ECU

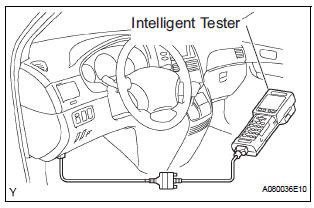

  1.  Connect the intelligent tester to the DLC3.
  2.  Turn the ignition switch to the ON position.
  3.  Turn the tester on.
  4.  Enter the following menus: DIAGNOSIS / OBD/ MOBD / OCCUPANT DETECT / DATA LIST.
  5.  Check the values by referring to the table below.

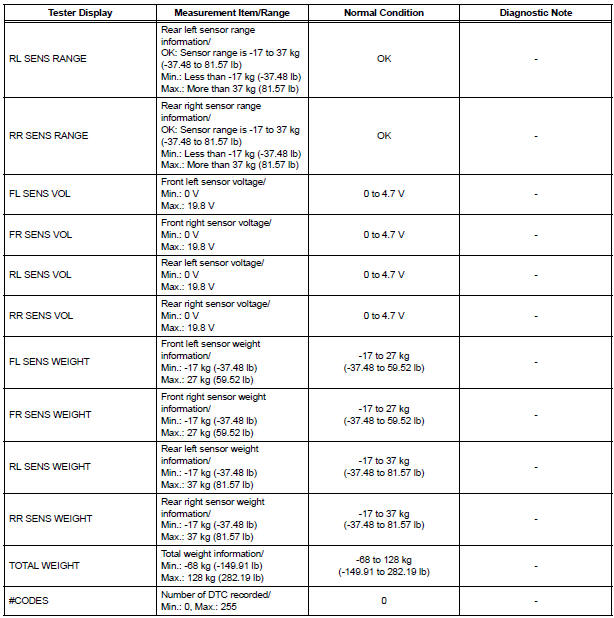

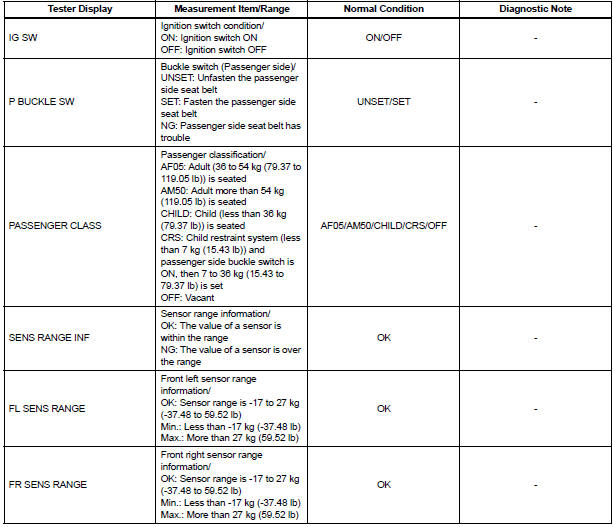

DATA LIST:

DATA LIST

DATA LIST

DTC check / clear
1. DTC CHECK HINT: When DTC B1150/23 is detected as a result of troubleshooting for "Airbag System", perform troubleshooting for the Occupant Classification System.  Check t ...

Diagnostic trouble code chart
1. DTCS FOR OCCUPANT CLASSIFICATION SYSTEM If a trouble code is displayed during the DTC check, check the circuit listed for the code in the table below (proceed to the page listed for that circuit ...
