Toyota Sienna Service Manual: Defogger relay

ON-VEHICLE INSPECTION

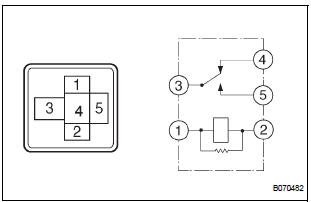

1. INSPECT DEFOGGER RELAY

INSPECT DEFOGGER RELAY

  1.  Inspect the resistance.

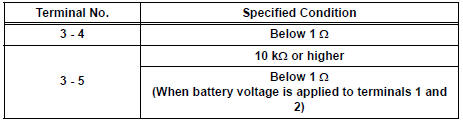

Standard resistance

Standard resistance

If the result is not as specified, replace the relay.
