Toyota Sienna 2010-2022 Owners Manual: Glove boxes

Toyota Sienna. Glove boxes

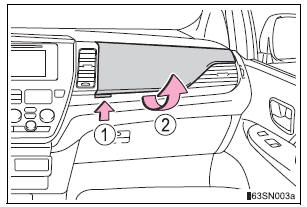

  1. Push the button.
  2. Open the lid.

The lower glove box can be opened by pulling the lever and can be locked and unlocked by using the master key (vehicles without a smart key) or the mechanical key (vehicles with a smart key system).

Toyota Sienna. Glove boxes


  1. Unlock
  2. Lock
  3. Open
