The following may indicate that your vehicle is overheating.

The needle of the engine coolant temperature gauge enters the red zone or a loss of engine power is experienced. (For example, the vehicle speed does not increase.)
The warning message indicating overheats is shown on the multiinformation display.
Steam is coming from under the hood.

Correction procedures

Stop the vehicle in a safe place and turn off the air conditioning system, and then stop the engine.
If you see steam: Carefully lift the hood after the steam subsides.
If you do not see steam: Carefully lift the hood.
After the engine has cooled down sufficiently, inspect the hoses and radiator core (radiator) for any leaks.

Toyota Sienna. Correction procedures

Radiator
Cooling fans

If a large amount of coolant leaks, immediately contact your Toyota dealer.

The coolant level is satisfactory if it is between the “FULL” and “LOW” lines on the reservoir.

Toyota Sienna. Correction procedures

Reservoir
“FULL” line
“LOW” line
Radiator cap

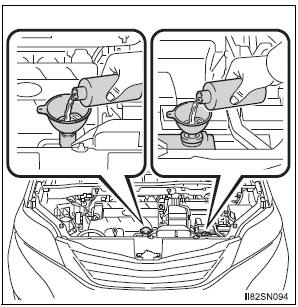

Add coolant if necessary.
Water can be used in an emergency if coolant is unavailable.

Toyota Sienna. Correction procedures

Start the engine and turn the air conditioning system on to check that the radiator cooling fans operate and to check for coolant leaks from the radiator or hoses.
The fans operate when the air conditioning system is turned on immediately after a cold start. Confirm that the fans are operating by checking the fan sound and air flow. If it is difficult to check these, turn the air conditioning system on and off repeatedly. (The fans may not operate in freezing temperatures.)
If the fans are not operating: Stop the engine immediately and contact your Toyota dealer.
If the fans are operating: Have the vehicle inspected at the nearest Toyota dealer.

WARNING

When inspecting under the hood of your vehicle

Observe the following precautions.

Failure to do so may result in serious injury such as burns.

If steam is seen coming from under the hood, do not open the hood until the steam has subsided. The engine compartment may be very hot.
Keep hands and clothing (especially a tie, a scarf or a muffler) away from the fan and belts. Failure to do so may cause the hands or clothing to be caught.
Do not loosen the radiator cap or the coolant reservoir cap while the engine and radiator are hot. High temperature steam or coolant could spray out.

NOTICE

When adding engine coolant

Add coolant slowly after the engine has cooled down sufficiently. Adding cool coolant to a hot engine too quickly can cause damage to the engine.

To prevent damage to the cooling system

Observe the following precautions:

Avoid contaminating the coolant with foreign matter (such as sand or dust etc.).
Do not use any coolant additive.
