Toyota Sienna Service Manual: Installation
HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.
1. INSTALL FRONT AIRBAG SENSOR LH
- Check that the ignition switch is off.
- Check that the battery negative (-) terminal is
disconnected.
CAUTION: After disconnecting the negative battery terminal, wait for at least 90 seconds before starting the operation.

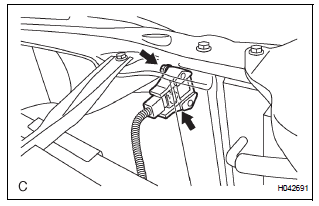

- Install the front airbag sensor LH with the 2 bolts.
Torque: 12.5 N*m (127 kgf*cm, 9 ft.*lbf)
NOTICE:
- If the front airbag sensor LH has been dropped, or there are any cracks, dents or other defects in the case or connector, replace it with a new one.
- When installing the front airbag sensor LH, be careful that the SRS wiring does not interfere with other parts and that it is not pinched between other parts.
- Connect the connector to the front airbag sensor LH.
- Check that there is no looseness in the installation parts of the front airbag sensor LH.
2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
3. PERFORM INITIALIZATION
- Perform initialization.
HINT: Some systems need initialization when disconnecting the cable from the negative battery terminal.
4. INSPECT SRS WARNING LIGHT
- Inspect the SRS warning ligh
