Toyota Sienna Service Manual: Removal

HINT:

1. PRECAUTION

CAUTION: Be sure to read "PRECAUTION" thoroughly before servicing.

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait for 90 seconds after disconnecting the cable to prevent the airbag working.

3. REMOVE FRONT AIRBAG SENSOR LH

REMOVE FRONT AIRBAG SENSOR LH

  1.  Disconnect the connector from the front airbag sensor LH.

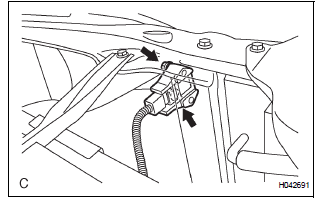

  2. Remove the 2 bolts and the front airbag sensor LH.
On-vehicle inspection
1. INSPECT FRONT AIRBAG SENSOR (VEHICLE NOT INVOLVED IN COLLISION)  Perform a diagnostic system check. 2. INSPECT FRONT AIRBAG SENSOR (VEHICLE INVOLVED IN COLLISION AND AIRBAG HAS NOT D ...

Installation
HINT:  Use the same procedures for the RH side and LH side.  The procedures listed below are for the LH side. 1. INSTALL FRONT AIRBAG SENSOR LH  Check that the ignition ...
