Toyota Sienna Service Manual: Side airbag sensor

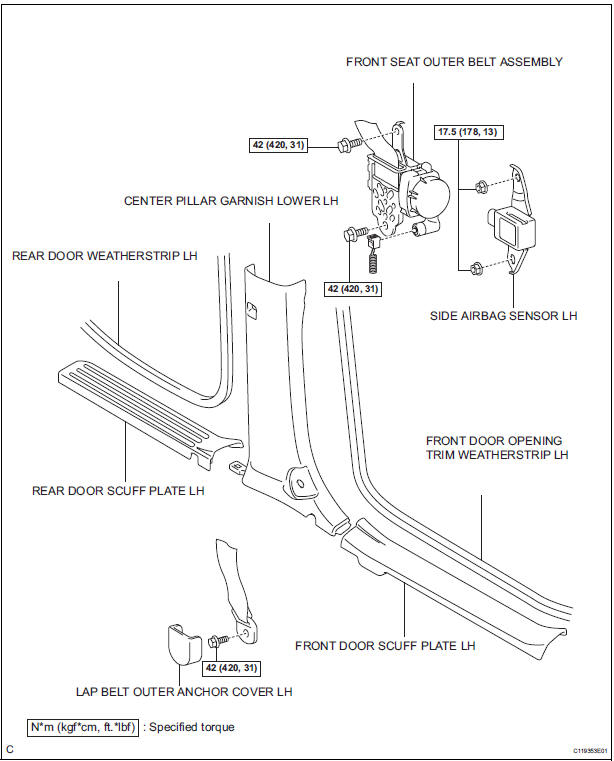

Installation

HINT:  Use the same procedures for the RH side and LH side.  The procedures listed below are for the LH side. 1. INSTALL FRONT AIRBAG SENSOR LH  Check that the ignition ...

On-vehicle inspection

1. INSPECT SIDE AIRBAG SENSOR (VEHICLE NOT INVOLVED IN COLLISION)  Perform a diagnostic system check. 2. INSPECT SIDE AIRBAG SENSOR (VEHICLE INVOLVED IN COLLISION AND AIRBAG HAS NOT DEP ...
