INSPECTION

1. INSPECT LUMBAR SUPPORT ADJUSTER ASSEMBLY

INSPECT LUMBAR SUPPORT ADJUSTER ASSEMBLY

  1.  Check operation of the lumbar support adjuster motor.

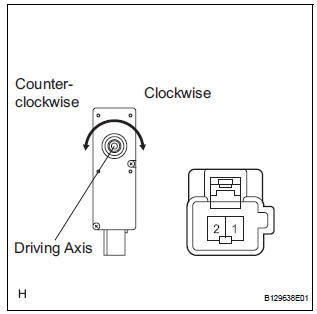

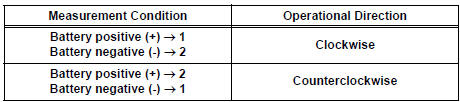

  1.  Check if the lumbar support adjuster moves smoothly when the battery is connected to the lumbar support adjuster motor connector terminal.

OK

OK

If the result is not as specified, replace the lumbar support adjuster assembly.

Front power seat lumbar switch
Inspection 1. INSPECT FRONT POWER SEAT LUMBAR SWITCH  Measure the resistance according to the value(s) in the table below. Standard resistance If the result is not as specified ...
