Toyota Sienna Service Manual: On-vehicle inspection

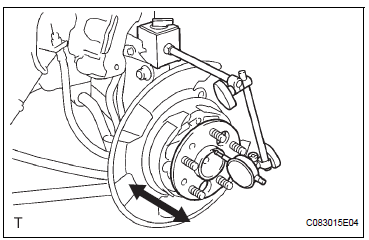

1. INSPECT REAR AXLE HUB BEARING BACKLASH

INSPECT REAR AXLE HUB BEARING BACKLASH

(a) Using a dial gauge, check for backlash near the center of the axle hub.

Maximum: 0.05 mm (0.0020 in.)

If backlash exceeds the maximum, replace the axle hub assembly.

NOTICE: Ensure that the dial gauge is set at right angles to the measurement surface.

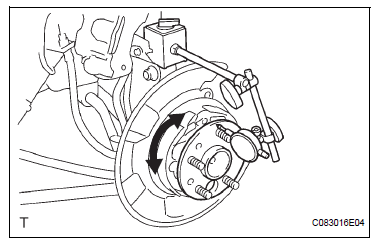

2. INSPECT REAR AXLE HUB BEARING DEVIATION

 INSPECT REAR AXLE HUB BEARING DEVIATION

(a) Using a dial gauge, check for deviation in the surface of the axle hub outside the hub bolt.

Maximum: 0.07 mm (0.0027 in.)

If backlash exceeds the maximum, replace the axle hub assembly.

NOTICE: Ensure that the dial gauge is set at right angles to the measurement surface.

Rear axle hub and bearing (for 4wd)
COMPONENTS ...

Removal
HINT: Replace the RH side by the same procedures as the LH side. 1. REMOVE REAR WHEEL 2. REMOVE REAR AXLE SHAFT LH NUT (See page DS- 22) 3. SEPARATE REAR DISC BRAKE CALIPER ASSEMBLY LH (a) Remo ...
