1. FRONT SEAT SIDE AIRBAG ASSEMBLY (VEHICLE NOT INVOLVED IN COLLISION)

FRONT SEAT SIDE AIRBAG ASSEMBLY

Perform a diagnostic system check.

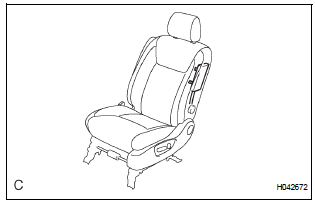

With the front seat side airbag assembly installed on the vehicle, perform a visual check. If there are any defects as mentioned below, replace the front seatback assembly with a new one: Cuts, minute cracks or marked discoloration on the front seatback assembly around the front seat side airbag assembly.

2. FRONT SEAT SIDE AIRBAG ASSEMBLY (VEHICLE INVOLVED IN COLLISION AND AIRBAG HAS NOT DEPLOYED)

FRONT SEAT SIDE AIRBAG ASSEMBLY

Perform a diagnostic system check.

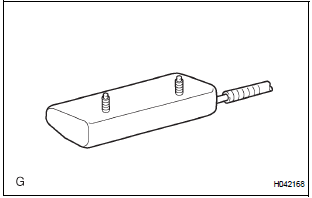

With the front seat side airbag assembly removed from the vehicle, perform a visual check. If there are any defects as mentioned below, replace the front seat side airbag assembly with a new one:

Cuts, minute cracks or marked discoloration on the front seat side airbag assembly.
Cracks or other damage to the wire harness or connector.

CAUTION: Be sure to follow the correct removal and installation procedures.

Front seat side airbag assembly

...

Disposal

HINT: Use the same procedures for the RH side and LH side. The procedures listed below are for the LH side. When scrapping a vehicle equipped with the SRS or disposing of t ...
