Sliding door handle

Open/close
Vehicles with power sliding doors: The sliding door will be automatically and completely opened and closed by the following.

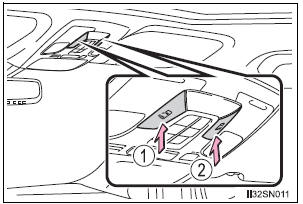

Power sliding door switches (vehicles with power sliding doors)
Press and hold the switch to open and close each sliding door.


Pressing the switch again while the door is operating will cause the operation to reverse. However, the reverse operation cannot be performed for the first second after automatic operation starts, even if the switch is pressed and held again.

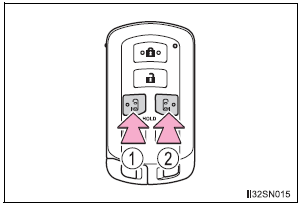

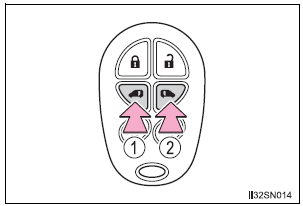

Wireless remote control (vehicles with power sliding doors)
Press and hold the switch to open/close the power sliding door.


Locking/unlocking the sliding door from inside
Canceling the power sliding door system (vehicles with power
