Toyota Sienna Service Manual: Cooling fan relay

On-vehicle inspection

On-vehicle inspection

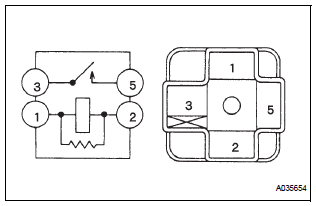

1. Cooling fan relay

(a) Remove the relay from engine room relay block No.

1.

(b) Measure the resistance of the relay.

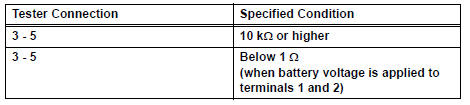

Standard resistance

If the result is not as specified, replace the cooling fan relay.

(c) Install the relay to engine room relay block No. 1.
