Toyota Sienna Service Manual: Rear axle beam

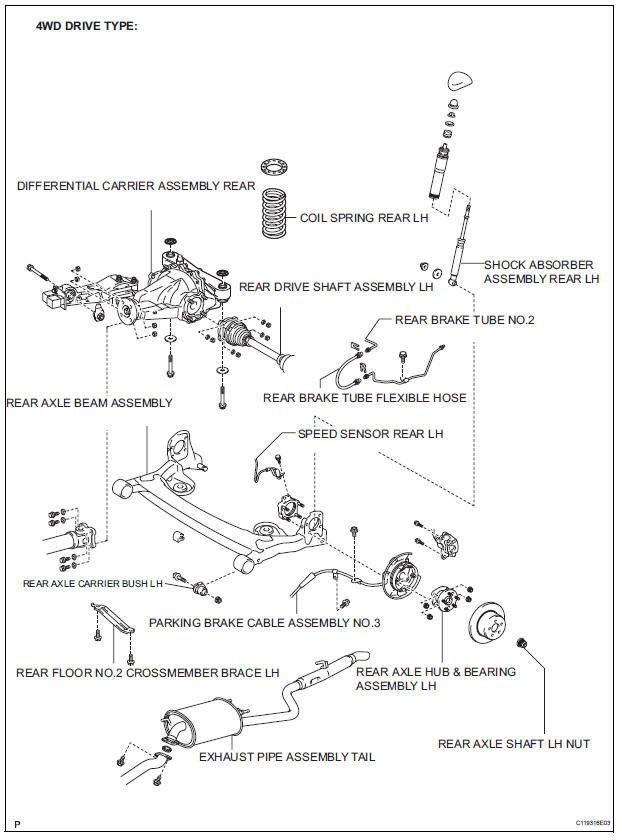

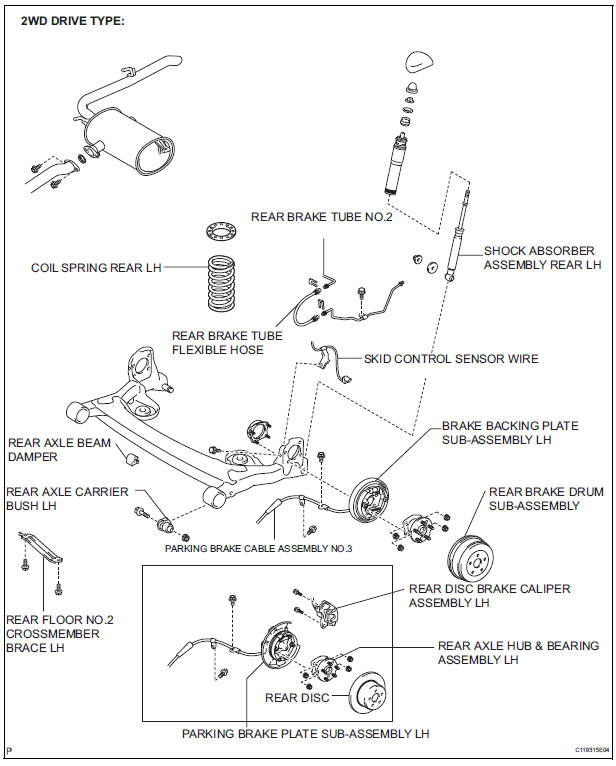

COMPONENTS

Rear axle beam

Rear axle beam

Disposal
1. DISPOSE OF SHOCK ABSORBER ASSEMBLY REAR LH (a) Fully extend the shock absorber rod. (b) Using a drill, make a hole in the cylinder as shown in the illustration to discharge the gas inside ...

Removal
1. Remove rear wheel 2. Remove skid control sensor wire (for 2wd) Hint: (see page sp-38) hint: disconnect the rh side by the same procedures as the lh side. 3. SEPARATE SPEED SENSOR REAR LH (fo ...
