Toyota Sienna Service Manual: Rear speed sensor (for 4wd)

Toyota Sienna Service Manual / Brake control / Rear speed sensor (for 4wd)

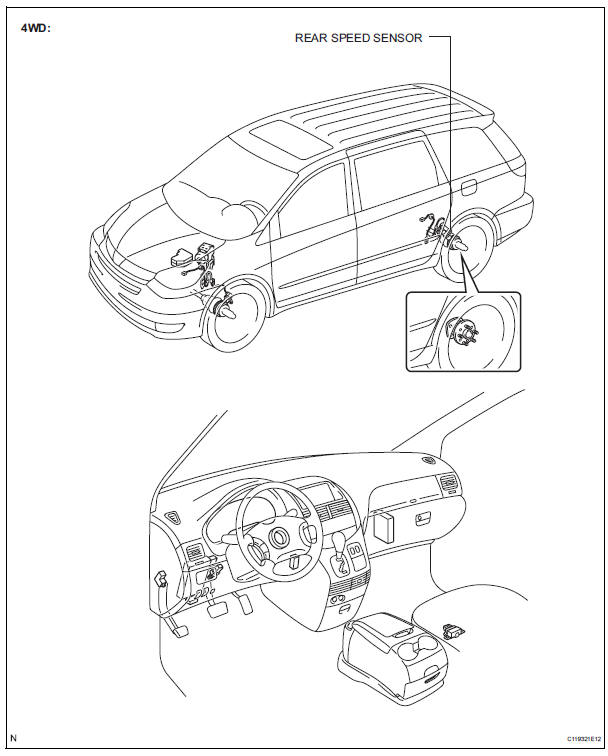

Components

Rear speed sensor (for 4wd)

Installation
HINT: Install the RH side by the same procedure as the LH side. 1. INSTALL REAR SPEED SENSOR (a) Clean the contacting surface of the axle hub and a new skid control sensor. NOTICE: Keep the ...

Removal
HINT: Remove the RH side by the same procedure as the LH side. 1. REMOVE REAR WHEEL 2. REMOVE QUARTER TRIM PANEL ASSEMBLY FRONT LH HINT: Remove the LH side by the same procedure as the RH side ...
